01

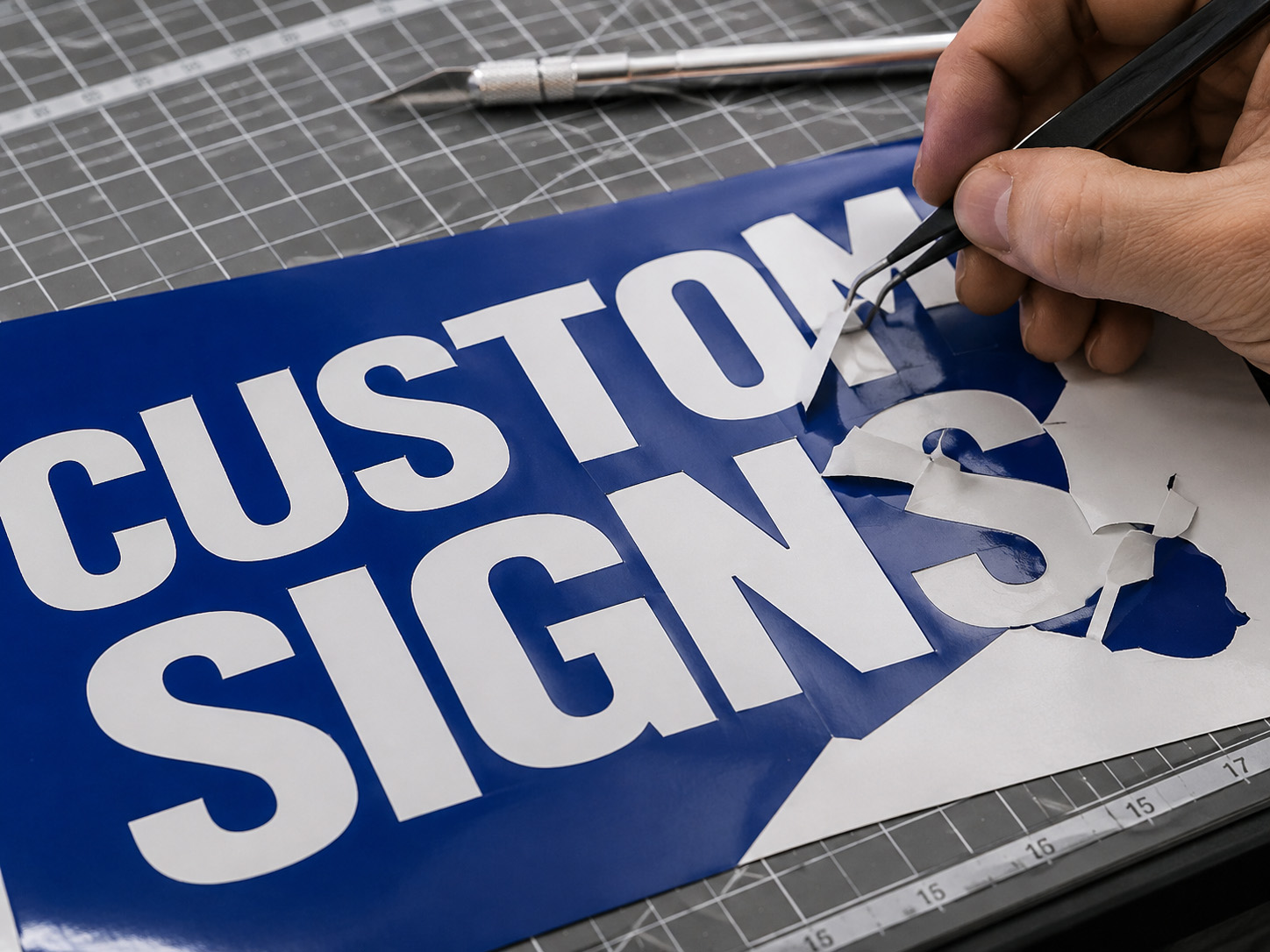

Cutting and Weeding
The artwork is precision-cut by machine. Unwanted vinyl around and inside the letters is then carefully removed.
ORACAL Solid-Colour Vinyl
Die-Cut Vinyl
Lettering Sticker
Custom text, numbers, logos and simple shapes precision-cut directly from solid-colour vinyl. Only the lettering remains after installation, without a printed rectangular background.
No Printed Background
Transfer Tape Included
Indoor & Outdoor Use
Standard & Reverse Cut

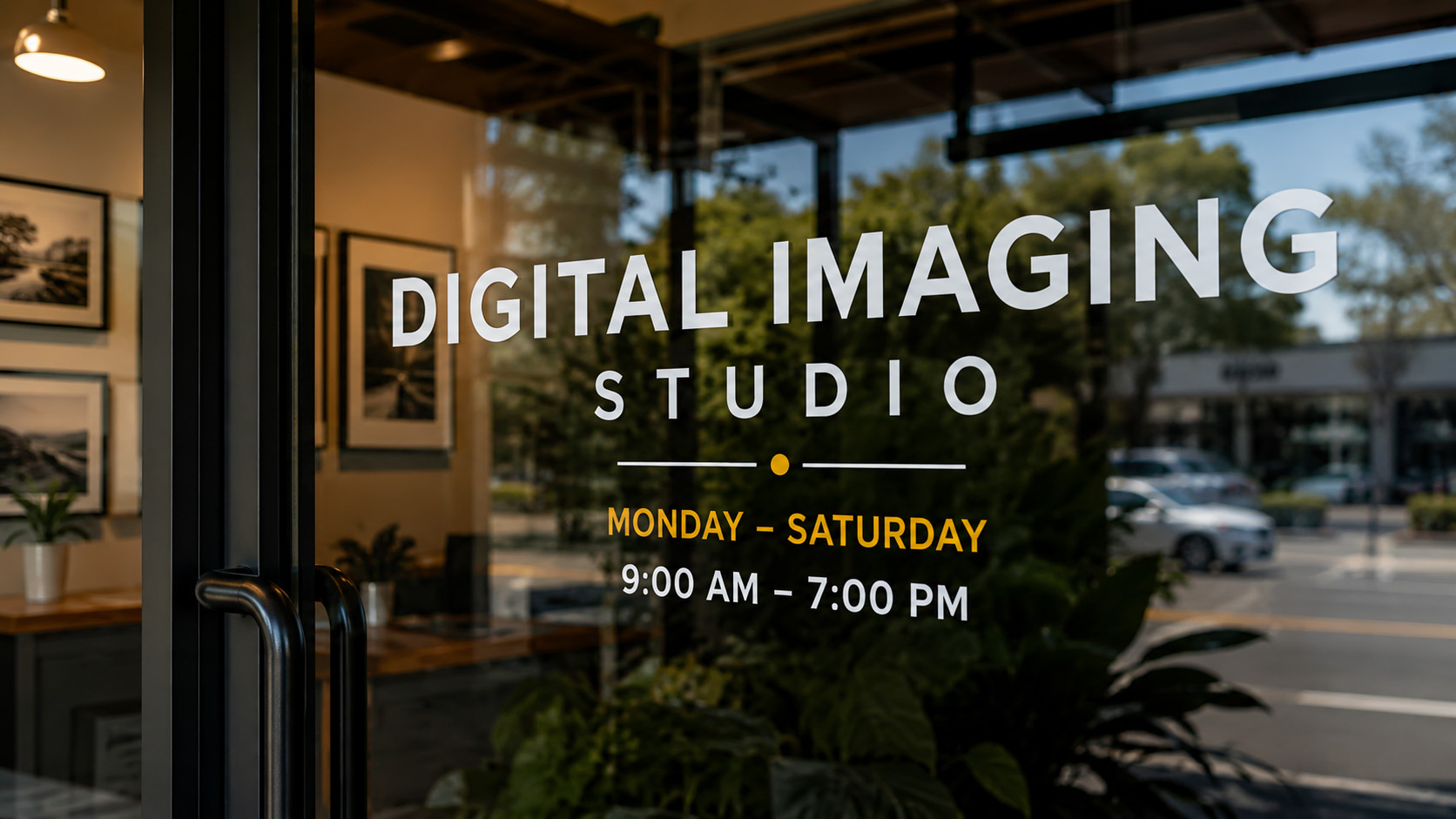

Professional Glass Lettering
Only the individual letters remain after installation.
How It Is Made
From Solid Vinyl to Finished Lettering
Die-cut lettering is not printed with ink. Your artwork is cut directly from a ready-made solid-colour vinyl sheet before the excess material is removed and transfer tape is applied.
01
02

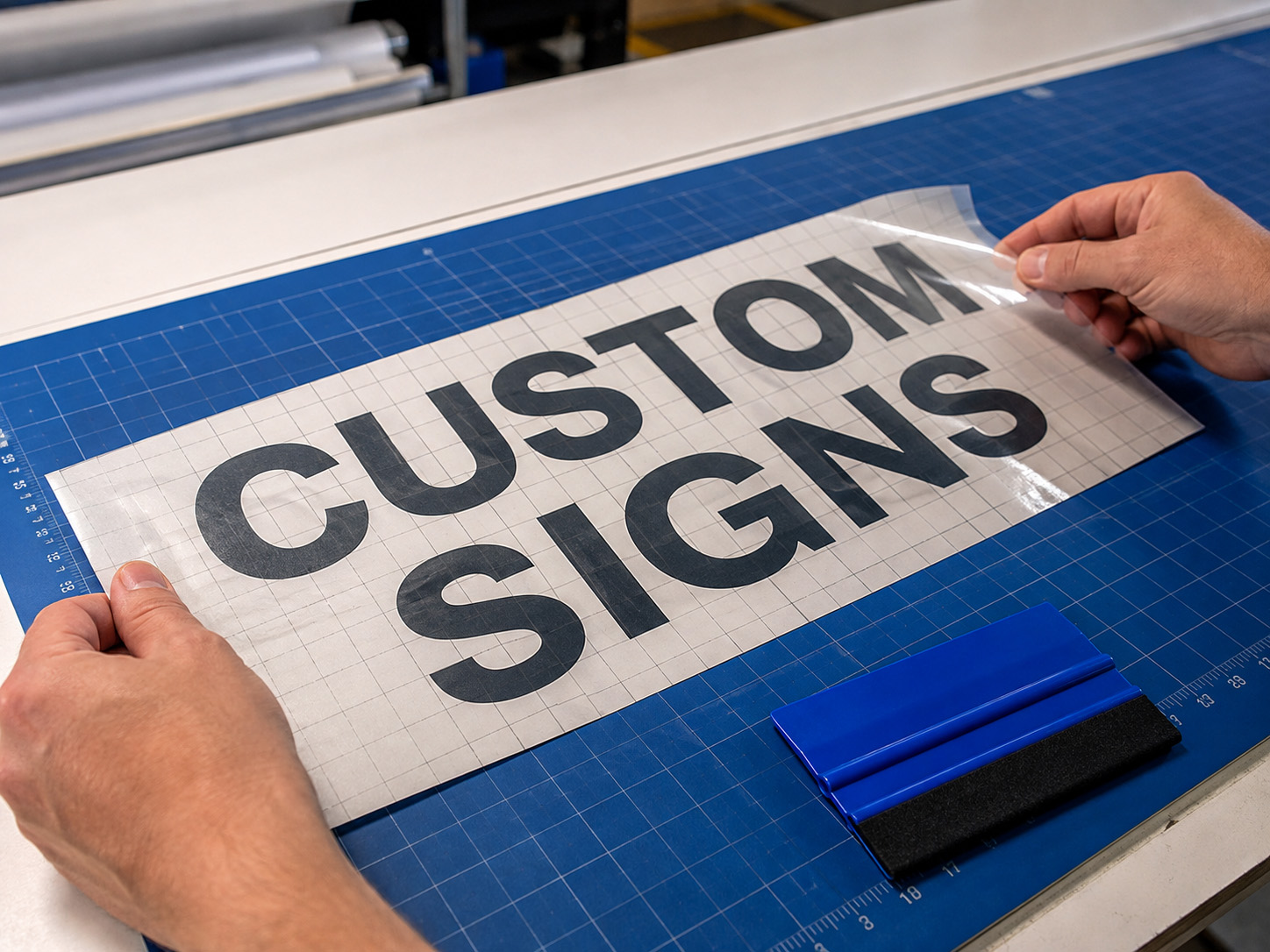

Transfer Tape Applied
Transfer tape holds every letter in the correct position so the complete design can be installed neatly and evenly.
03

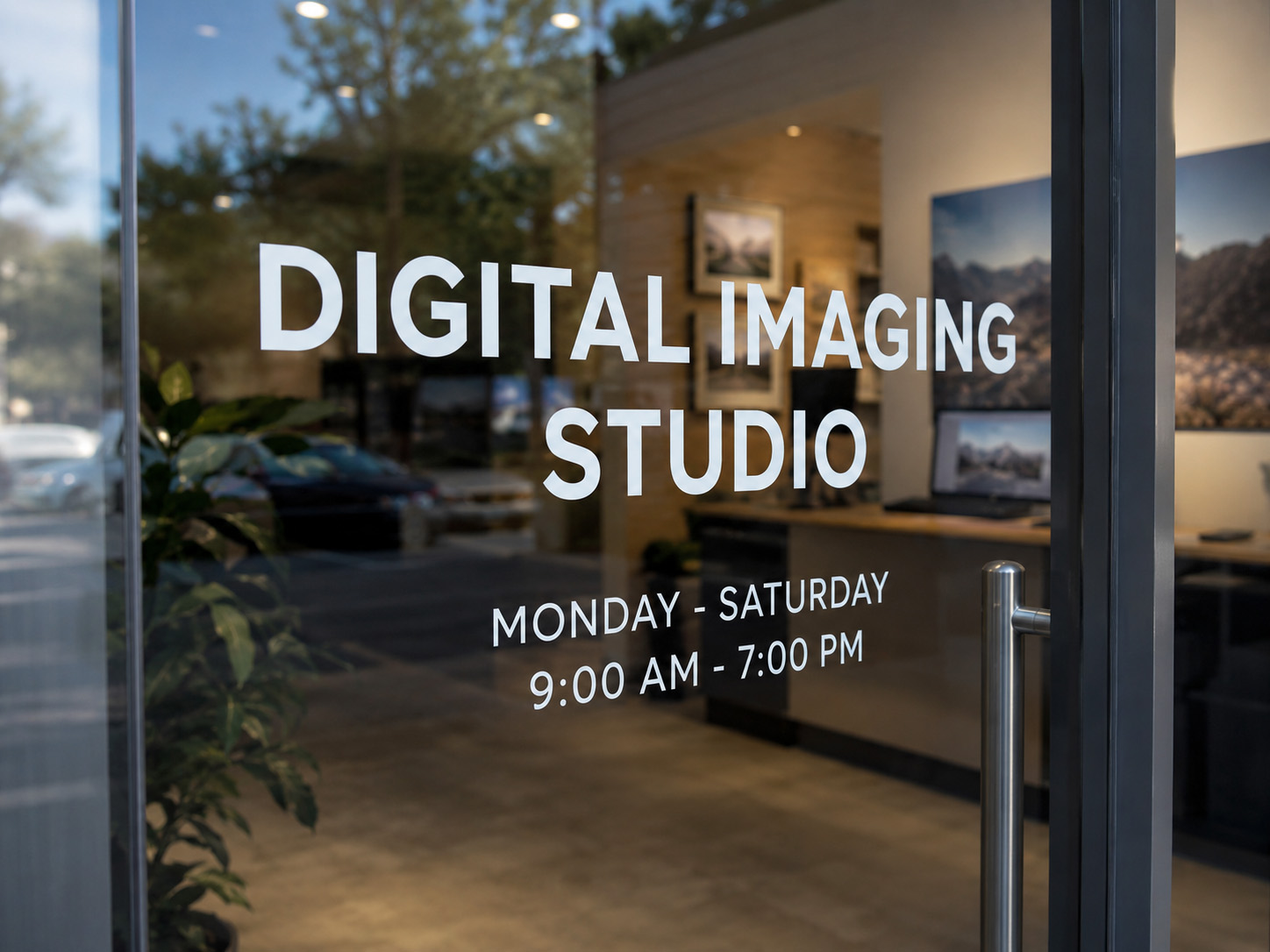

Clean Final Result
After the transfer tape is removed, only the individual letters and shapes remain on the surface.
Solid-Colour Vinyl
ORACAL vinyl selected
→
Machine Cutting
Artwork cut to shape
→
Manual Weeding
Excess vinyl removed
→
Transfer Tape
Ready for installation
Instant Price Estimate
Die-Cut Lettering Calculator
Enter the overall width and height occupied by the complete lettering layout. A minimum chargeable area of 4 sq ft applies for each colour and design.
1
Enter Overall Size
Measure the complete width and height of the lettering.
2
Select Cutting Detail
The category depends on letter size, line thickness and artwork complexity.
Minimum Recommended Letter Size
Simple Bold Letters: Minimum 10 mm Height
Letter size alone does not determine whether an artwork can be cut successfully. Font style, line thickness, spacing and small internal details must also be considered.
10 mm
Bold & Simple
15 mm
Normal Text
20 mm
Script & Detailed
Minimum Recommended Line Thickness
Approximately 1.5–2 mm
Lettering below 10 mm, very thin fonts, sharp details
and tightly spaced artwork are subject to inspection.
We may recommend enlarging, simplifying or changing
the artwork to a printed sticker.
3
Choose Vinyl Colour
Available colours and finishes are subject to stock.
4
Artwork Setup
Select the artwork assistance required.
Complex logo redraw, detailed tracing or new design
work may require a separate quotation.

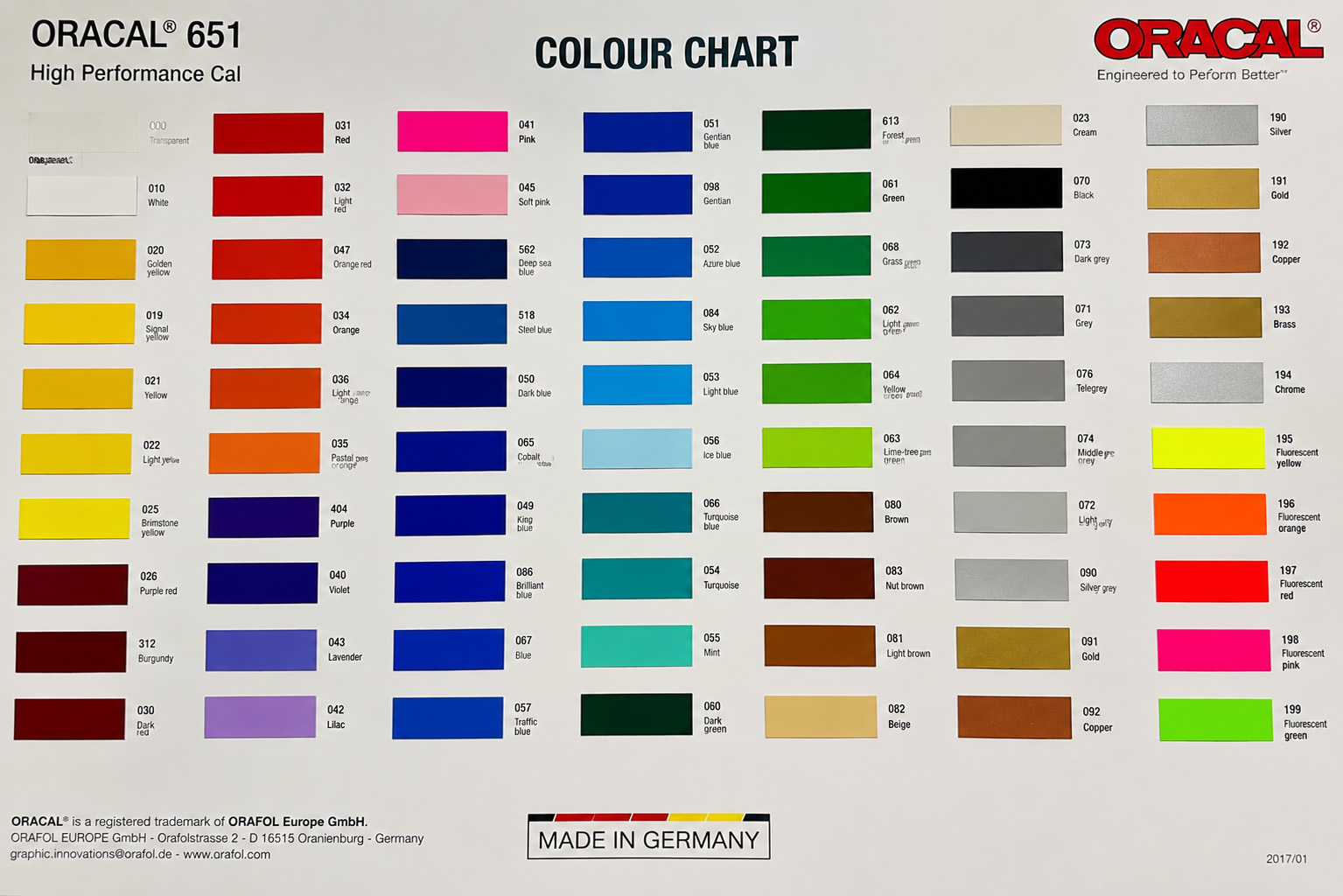

Solid-Colour Vinyl
Genuine ORACAL Vinyl Colours
Die-cut lettering uses vinyl that is already manufactured in a solid colour. The colour does not come from an ink printing process.
Clean Solid Colour
Suitable for lettering, numbers and simple logos.
Gloss and Matt Options
Actual finish depends on the selected colour and stock.
Indoor and Outdoor Use
Suitable for smooth, clean and dry surfaces.
Colour availability:
Colours displayed on screen are for reference only.
Actual vinyl colours and finishes may vary slightly and
are subject to current stock.
Suitable Applications
Clean Lettering for Smooth Surfaces
Suitable for business names, operating hours, vehicle information, directional signs and simple one-colour branding.
GLASS
Glass Doors & Windows
Business names, operating hours, telephone numbers, directions and safety information.
AUTO
Vehicle Lettering
Company names, contact information, unit numbers and simple one-colour vehicle graphics.
SIGN
Acrylic & Sign Panels
Suitable for acrylic, aluminium composite panels and other smooth signboard surfaces.
→
Directional Information
Room names, warning signs, floor numbers, arrows and directional instructions.
Cutting Direction
Standard Cut or Reverse Cut?
Select the cutting direction based on which side of the glass or surface the lettering will be installed.
VIEWER
→
STICKER
→
SURFACE
Most Common
Standard Cut
The sticker is installed on the front or outside of the surface and viewed from the same side.
- Vehicle body
- Acrylic sign panel
- Outside glass installation
- General signboard use
VIEWER
→
GLASS
→
STICKER
Inside Glass
Reverse Cut
The artwork is mirrored and installed from inside the glass so it can be read correctly from outside.
- Shopfront glass
- Office glass door
- Indoor installation facing outside
- Protected from direct handling

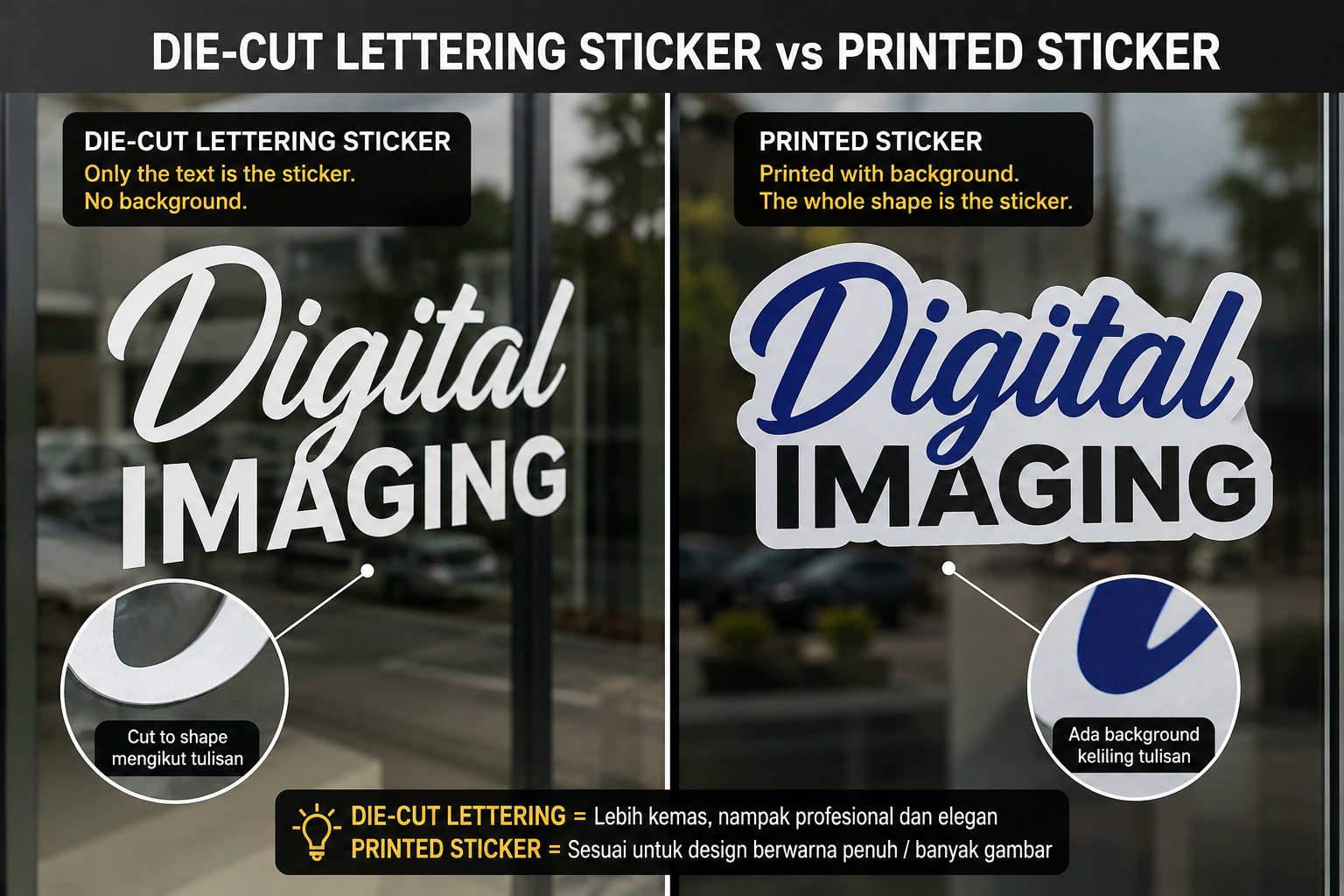

Choose the Correct Product
Die-Cut Lettering or Printed Sticker?
Both products are useful, but they are manufactured differently and are suitable for different artwork styles.
Die-Cut Vinyl Lettering
- Cut from solid-colour vinyl
- Best for text, numbers and simple logos
- No printed rectangular background
- One solid colour for each vinyl layer
- No photographs or colour gradients
Printed & Contour Cut Sticker
- Artwork is printed using ink
- Suitable for full-colour logos
- Supports photographs and gradients
- Suitable for detailed multi-colour artwork
- Can include a white border or background
Which one should you choose?
Use die-cut lettering for simple text and solid-colour logos.
Use printed stickers for artwork containing photographs,
gradients or many different colours.
Pricing Guide
Simple and Transparent Pricing
Pricing is calculated from the overall cutting layout, cutting detail and artwork preparation required.
RM
10
/ sq ft
Minimum Charge: RM40
- Large and clear lettering
- Simple fonts and numbers
- Basic logos and shapes
- Easier vinyl weeding process
RM
15
/ sq ft
Minimum Charge: RM60
- Smaller lettering
- Thin lines and detailed shapes
- Script or decorative fonts
- More detailed manual weeding
Minimum chargeable area:
A minimum of 4 sq ft applies for each vinyl colour and design.
For example, a Standard Cut order measuring 2 ft × 1 ft is
still charged at the minimum price of RM40.
Price Calculation Examples
| Overall Size | Cutting Type | Chargeable Area | Calculation | Price |
|---|---|---|---|---|
| 2 ft × 1 ft | Standard Cut | Minimum 4 sq ft | 4 × RM10 | RM40 |
| 4 ft × 1 ft | Standard Cut | 4 sq ft | 4 × RM10 | RM40 |
| 4 ft × 2 ft | Standard Cut | 8 sq ft | 8 × RM10 | RM80 |
| 4 ft × 1 ft | Fine Detail Cut | 4 sq ft | 4 × RM15 | RM60 |
| 4 ft × 2 ft | Fine Detail Cut | 8 sq ft | 8 × RM15 | RM120 |
Artwork Preparation
Vector Artwork Produces the Best Cutting Result
Die-cut vinyl requires a clean cutting path. Vector artwork allows the cutting machine to follow the exact outline of each letter, number and shape.
AI
EPS
SVG
PDF
JPG and PNG files can be used as visual references,
but may require vector tracing before production.
Fonts should be converted to outlines whenever possible.
Artwork Setup Charges
Print-ready vector artwork
Correct size and ready for cutting
Free
Simple text and font setup
Basic typing using an available font
RM5
Basic layout adjustment
Size, alignment and simple arrangement
RM10
Detailed adjustment or tracing
Subject to artwork complexity
From RM20
Complex logo redraw or new logo design will be quoted separately after the artwork is reviewed.
Important Information
Before Placing Your Order
Price Includes
Vinyl, machine cutting, manual weeding, transfer tape and completed sticker supply.
One Colour Pricing
Calculator pricing is for one colour. Multi-colour designs require separate cutting layers.
Production Time
Standard production is approximately 2–3 working days after payment and artwork approval.
Supply Only
Installation is not included unless stated separately in the official quotation.
Minimum Letter Size
Simple bold letters should generally be at least 10 mm high. Smaller or detailed artwork requires inspection.
Suitable Surfaces
Apply onto clean, dry and smooth surfaces. Rough or dusty surfaces may reduce adhesion.
Frequently Asked Questions
Common Questions
Is this sticker printed?
No. This product is cut directly from ready-made
solid-colour vinyl. No ink printing is involved.
Will there be a rectangular background?
No. The unwanted vinyl is removed during production.
After installation, only the letters, numbers or
selected shapes remain.
What is the smallest lettering that can be cut?
Simple bold lettering should generally be at least
10 mm high.
Normal text is recommended at approximately
15 mm or larger, while script fonts,
connected lettering and detailed artwork should generally
be at least 20 mm high.
The thinnest lines should preferably be approximately
1.5–2 mm thick.
Final acceptance depends on the font, spacing, internal
details, vinyl colour and overall artwork complexity.
Lettering below 10 mm is subject to inspection and is
not guaranteed.
Why can some 10 mm letters be cut while others cannot?
Two letters with the same height can have very different
line thicknesses and details. A bold block font is generally
easier to cut and weed than a thin script or decorative font.
Small spaces inside letters such as A, B, e, a and R may
also become difficult to weed when the design is too small.
What happens if my artwork is too small or too detailed?
Our team may recommend increasing the lettering size,
using a thicker font, increasing the spacing, simplifying
small details or changing the design to a printed sticker.
This helps prevent the vinyl from tearing, lifting or becoming
damaged during cutting, weeding and installation.
What is the difference between Standard Cut and Fine Detail Cut?
Standard Cut is suitable for larger, simpler lettering.
Fine Detail Cut applies to smaller letters, thin lines,
script fonts or detailed designs requiring more manual work.
Fine Detail Cut does not guarantee that extremely small
artwork can be produced.
Why is there a minimum charge of 4 sq ft?
Every order requires artwork preparation, vinyl loading,
machine setup, cutting, weeding and transfer tape.
Orders below 4 sq ft therefore use the minimum charge.
Can I use more than one vinyl colour?
Yes. Each colour requires a separate vinyl layer,
cutting process and alignment. Multi-colour artwork
will be quoted after inspection.
What is reverse cut?
Reverse cut lettering is mirrored and installed from
inside a glass panel so it can be read correctly from outside.
Is installation included?
The displayed calculator price is for supply only.
Installation is excluded unless specifically included
in the quotation.
How long does production take?
Standard production normally takes approximately
2–3 working days after payment confirmation and
final artwork approval.
Ready to Order?
Send Us Your Size and Artwork
Our team will check the artwork, minimum lettering size, cutting complexity, available vinyl colour and final price.
